Yamaha MGX16B Mixing Console
Description

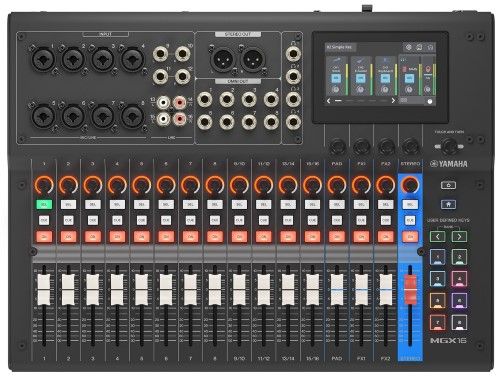

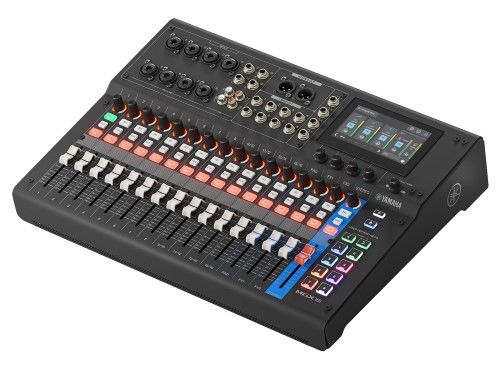

Yamaha MGX16B Black 22-Channel Digital Mixing Console
VHY8950
The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX16 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.
- 15 + 1 fader configuration (non-motorized fader)
- A 4.3-inch touchscreen with five control knobs
- Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
- Busses: 1 STEREO + 8 MIX
- Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
- Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
- USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
- USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
- microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
- Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
- Built-in DSP processor for professional sound and latency-free monitoring
- Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
- Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
The Digital Evolution of an Analog Classic
Building on the legacy of Yamaha's MG Series already established as a global standard in mixing consoles MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.
The powerful and extremely versatile features of the MGX16 are designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems whether in halls, cafés, clubs, or houses of worship to podcast streaming and professional recording, the MGX16 adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.
Versatility and Professional Sound You Can Count On
An audio mixer is expected to offer considerable versatility to accommodate a wide range of applications such as live sound, podcast and live streaming, and recording while delivering audio quality that satisfies the audience, the musicians and performers on stage, and you, the one who supports and shapes the entire experience.
The MGX features carefully selected physical I/O and extensive mixing capacity that enables flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.

The MGX16 is equipped with 8 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 8 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

It also delivers extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses and 1 STEREO bus.
Professional, True Sound
By pursuing Yamaha's "True Sound" philosophy and utilizing high-performance AD/DA converters, the MGX mic preamps achieve an impressive 86 dB gain range with ultra-low distortion, and a 125 dB dynamic range at stereo output. Every nuance of your vocal and instrumental performance will be captured and reproduced with stunning accuracy.
This refined professional sound is guaranteed to satisfy not only discerning engineers, but also musicians, performers, and audiences alike.

MGX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer, letting you shape your sound exactly as you imagine. And with clear, comfortable monitoring on stage, in the studio, or streaming every moment you capture will resonate with beauty.
Flexible Power, Unrivaled Performance
In today's world, traditional applications such as live or installed sound, podcasting and live streaming, and recording production continue to diversify and evolve. Hybrid live events that combine live performances with simultaneous streaming are becoming more common. To meet this broad range of demands with greater flexibility, the MGX is designed not only as a versatile mixer but also as a multifunctional hub, equipped with a powerful USB interface, Bluetooth audio connectivity, sound pads, and microSD card recording/playback all packed into a compact, portable body.

Optimized Integration
By making full use of its flexible routing functions and dual MAIN/SUB USB ports, you can integrate a wide range of audio sources and devices into a setup that works exactly the way you want.
- USB MAIN: 22-track recording / 22-track playback
- USB SUB: 2-track recording / 2-track playback

Convenient Bluetooth Audio Input
Bluetooth connectivity allows users to easily integrate wireless audio sources into their live performances, streaming, and studio sessions.

Effortless Style in Sound
Equipped with eight customizable pads, you can easily add sound effects in real time to enhance your events, podcasts, and streaming. These pads also function as user-defined keys.
Maximize Your Multi-Track
With the MGX, you can record up to 16 tracks of audio and playback 2 tracks directly from a microSD card. From creating a reliable backup for mobile standalone recording sessions, to playing background music at a venue, you can deliver pro-quality sound anywhere.
Seamless Creative Flow
The highly versatile MGX digital mixing console is equipped with professional-quality effects, flexible routing, and a wide range of other features that can all be operated fast and intuitively using its touch-panel GUI, comprehensive controllers, assistive functions that streamline workflow, and scene recall capability. The MGX provides an operating experience that keeps your creative workflow focused and free of interruption.

Fast, Intuitive Control - Dialed In
In addition to the core mixer controller section with sixteen 60 mm faders and send knobs, a feature-packed GUI on the intuitive touch LCD, four customizable knobs, and the TOUCH AND TURN knob let you enjoy fast, precise, and effortless control—right at your fingertips.
Intelligent Tools for Exceptional Results
Auto Gain optimizes input volumes, Clip Safe prevents sudden distortion, and Total FX gives you tools like the Ducker automatically prioritizing important sounds and a Multi-Band Compressor to conveniently enhance your overall audio quality, and even a Delay for lip-sync adjustment.
With these features, the MGX keeps your workflow smooth and your sound consistently professional.

Change Fast, Stay Ready
With a Scene Recall function you can switch between different setups or applications instantly. Pair it with Simple Mode for extra support, so you can stay focused on what matters most: your creativity.
Your Workflow, Your Way
The eight pads and four knobs located at the front right of the MGX also function as customizable user-defined keys. Their assignments can be managed across four banks, allowing you to configure them according to your needs for example, triggering sound pads, scene recall, or playing back a test tone from the built-in oscillator for venue sound checks.

Complete. Connected. Creative.
The MGX is not only a versatile audio mixer, but also a fully functioning recording studio and streaming station that meets the needs of a wide range of applications including live sound reinforcement, streaming and audio production. When used together with Steinberg’s software mixer MixKey, users can easily manage all audio signals on their PC. In future updates, seamless integration with Yamaha's USB controller CC1 and Elgato’s Stream Deck controller is also planned to further enhance workflow and system operation.
With Yamaha’s ever-expanding lineup of compatible products and continuous updates, a system built around an MGX console will continue to evolve with you as you refine your skills and broaden your creative horizons whether as an engineer, producer, artist, streamer, or any combination of the four.

A complete suite of Steinberg music production software, together with the free software mixer MixKey, provides support for everyone from beginners just starting out to experienced engineers and creators looking to branch out into new production styles or content creation.

Seamless Controller Integration for a Custom Workflow
Seamless integration with Elgato’s Stream Deck and OBS Studio enhances the smoothness and reliability of your entire control experience. Future support for remote MGX operation via Stream Deck—along with ongoing development and further feature expansion is planned to continually extend these capabilities. This will allow you to build a workflow that truly fits your creative style and stay fully focused on music production, streaming, video content creation, and performance.
SYSTEMS
1. Live Sound - Small band street performance
This setup supports small band street performances by mixing vocal microphones, guitars, keyboards, and Bluetooth background music through the MGX12.
Audio from each instrument and microphone is routed into the mixer and sent to the FOH speakers for live sound reinforcement.
The mixed audio is also delivered via USB to a computer for recording in Cubase, while a simultaneous multitrack backup is captured to a microSD card in the MGX.
2. Installed Sound - Small live club
This setup is designed for small live clubs, mixing vocals, guitars, keyboards, and playback sources through the MGX16.
Multiple microphones, instruments, and Bluetooth or CD playback audio are routed into the mixer and sent to the FOH system and stage monitors for clear live sound coverage.
The mixed audio can also be sent via USB to a computer for playback or recording in Cubase, while a simultaneous multitrack backup is captured to the microSD card in the MGX.
3. Podcast with four speakers
This setup supports a four-person podcast by integrating studio microphones, remote guests, playback sources, and jingle cues through the MGX16.
Audio from four MC microphones, USB-connected remote participants, CD or DJ playback devices, and jingle sounds triggered from the MGX sound pads is mixed and routed to both studio and control-room monitoring.
The mixed audio is sent via USB to a computer for recording and streaming in Wavelab Cast, while a simultaneous multitrack backup is captured to the microSD card in the MGX.
4. Production – Mobile Recording
This setup is designed for mobile recording, capturing dialogue, boom mic audio, and sync tones through the MGX16.
Audio from three MC microphones, a boom microphone, and sync tones triggered from the MGX sound pads is mixed and delivered to individual monitoring headphones for on-site checking.
The mixed audio is sent via USB to a computer for recording in Cubase, while a simultaneous multitrack backup is captured to the microSD card in the MGX.
SPECIFICATIONS:
- Analog Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
- Analog Outputs: 2 XLR, 8 TRS
- USB to Host: 2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
- Phones: 4 TRS (100 mW+100 mW @40 Ohm)
- DC: 1 (Barrel type, DC power IN)
- microSD Card Slot: 1
- Bluetooth: 1 Bluetooth audio input (Bluetooth 5.0, A2DP)
- User Interface: 4.3-inch touch screen, 16 x 60 mm fader, 16 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")
- Record & Playback: USB 22-track recording, 22-track playback; USB [Sub] 2-track recording, 2-track playback; microSD Card Up to 16-track recording, 2-track playback
- Sampling frequency rate: 96 kHz - 44.1 kHz
- Signal delay: Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
- Frequency response: +0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
- Dynamic range: 125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min
- Gain range: 86 dB
- Power requirements: DC16 V/2.4 A, PA-300C AC power adapter
- Dimensions WxHxD: 419 mm x 96 mm x 319 mm
- Weight: 4.7 kg
- Input Channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX
- Mix Buses: 8 (mono)
- Stereo Buses: 1
- FX Buses: 2
- Cue Buses: 1
- DSP: Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)
