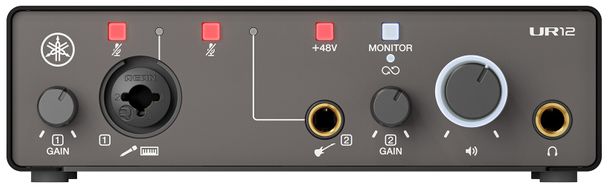

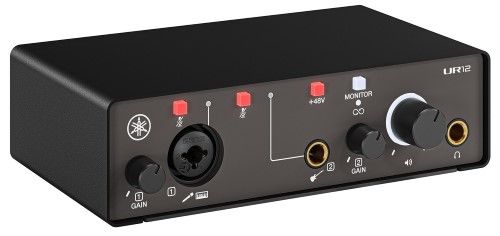

Yamaha UR12MK3 B Black Audio Interface

Stock Code:
060035
Price:
$149.00
Stock Level:
In Stock

Description

Yamaha UR12MK3 Audio Interface

2-in/2-out USB-C Audio Interface with 24-bit/192kHz

VHX7770

2-in/2-out USB-C Audio Interface with 24-bit/192kHz support, 1 Combo/1 TRS inputs, Direct Monitoring, Loopback, and Steinberg software suite

  • USB type-C Audio Interface with 24-bit / 192 kHz support
  • 106 dB dynamic range (Input)
  • 1 UR mic preamp with +48 V phantom power
  • 1 Mic/Line Combo input with mute button, 1 Hi-Z input
  • 2 TRS line outputs, 1 Headphones output that is controlled by the output volume
  • Input mixing channels: 2 mono + 1 stereo loopback
  • Busses: 1 MIX (Stereo)
  • Simple Loopback function facilitates effortless live streaming
  • Direct monitoring switch offers latency-free direct hardware monitoring of input signal
  • Compact, lightweight metal housing available in multiple color options - Black / White
  • Includes Cubase AI for PC, Cubasis LE DAW app for iPhone/iPad, Steinberg Plus and USB cable
  • Dimensions (W x H x D): 158 x 47 x 102 mm, (6.2" x 1.9" x 4.0")
  • Net weight: 450 g (1.0 lb)

SPECIFICATIONS:

  • Analog Input: 1 Mic/Line Combo, 1 TRS *Input 2 supports Hi-Z
  • Analog Output: 2 TRS
  • USB TO HOST: 1 (USB Type-C, 24-bit)
  • Phones: 1 TRS (40 mW+40 mW @40 Ohm)
  • DC: 2 (Type-C USB bus power or Type-C USB DC IN)
  • User Interface: Input Gain, Mute, +48 V phantom power, Monitor switch, Volume (Main/Headphones)
  • USB Recording & Playback: 2-track recording, 2-track playback
  • Sampling frequency rate: 192 kHz - 44.1 kHz
  • Frequency response: +0.0/-0.3 dB (20 Hz to 20 kHz)
  • Total harmonic distortion: [MIC/LINE/Hi-Z] 0.004 % at 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.004 % at 1 kHz, 20 kHz LPF
  • Dynamic range: [MIC/LINE/Hi-Z] 106 dB, [MAIN OUTPUT] 107 dB
  • Gain range: 54 dB (Hi-Z: 39.5 dB)
  • Power requirements: DC5 V/0.5 A
  • Power consumption: 2.5 W
  • Dimensions Wx H x D: 158 mm (6.2") x 47 mm (1.9") x 102 mm (4.0")
  • Net weight: 450 g (1.0 lb)
  • Included Accessories: UR22MK3 UR12MK3 Setup Guide, Cubase AI License Card, Steinberg Plus License Card, USB 2.0 Cable (USB Type-C to Type-A, 1.5 m)
  • Input Mixing Capacity: 2 Mono + 1 Stereo loopback
  • Mix Buses: 1
  • Stereo Buses: 1
