Behringer DI20 Ultra DI Box

Stock Code:
330136
Price:
$49.00
Stock Level:
In Stock

Description

BEDI20 Behringer DI20 Ultra Pro 2-Ch Di Box Splitter

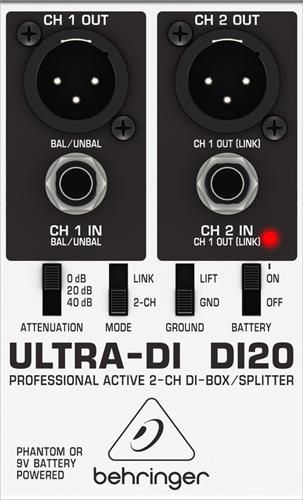

ULTRA-DI DI20 is a one of a kind DI (direct injection) box that can convert up to two separate unbalanced 1/4" TRS lines into two balanced XLR outputs, or function as a signal splitter. Electric guitarists, keyboardists and bassists will love the flexibility this incredible box provides.

Mono, Stereo or Double the Amps :
By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal, or a split-signal feeding two separate amps. The DI20 also features a ground lift switch and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator allows you to connect to your amplifier's speaker outputs, even amps rated as high as 3,000 Watts. You can power the DI20 with either a 9 V battery or your mixer's phantom power supply (+18 to +48 V DC). The whole package is wrapped in an ultra compact, road suitable and rugged metal housing.

Be Direct :
If you're a working musician who demands uncompromising functionality and durability, the ULTRA-DI DI20 will astound you and so will its very affordable price tag.

  • Professional and multi-purpose direct injection box for stage and studio applications
  • Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
  • Converts 2 independent unbalanced 1/4" TRS line inputs into 2 balanced XLR outputs
  • Additional Split mode (channel 1 assigns signal to both XLR outputs)
  • Ultra-flat frequency response due to servo-balanced operation
  • Internal battery automatically shuts off when phantom power is applied
  • Allows direct connection to speaker outputs with up to 3,000 Watts
  • Ground Lift switch eliminates typical ground loop problems
  • Input 2 usable as channel 1 Link output (additional to XLR output)
  • 1/4" TRS and gold plated XLR connectors
  • Ultra rugged, road suitable metal case
  • High quality components and exceptionally rugged construction ensure long life

    Conceived and designed by BEHRINGER Germany
