Yamaha DBR10 Powered Speaker System

Stock Code:
330968
Price:
$679.00
Stock Level:
In Stock

Description

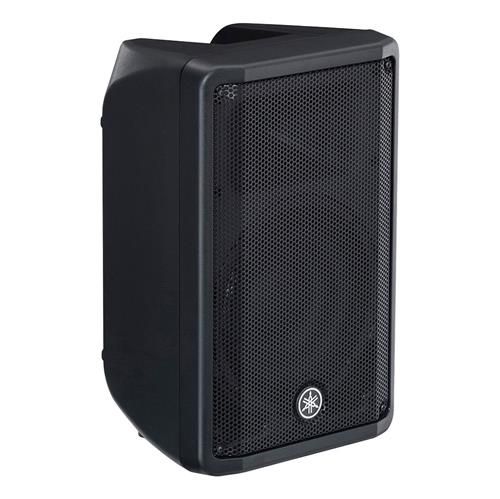

Yamaha DBR10 10" 2-way Powered Loudspeaker

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

DBR Series powered loudspeakers harness the same state-of-the-art Yamaha DSP, amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

  • The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.
  • The DBR10's high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies.
  • DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.
  • DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Easy-to-use Onboard 2-Channel Mixer



SPECIFICATIONS:

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 55Hz – 20kHz
Nominal coverageH 90°
V 60°
ComponentsLF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis) 129dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 60W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Top x 1
Flying and mounting hardware Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
DimensionsW 308mm (12.1")
H 493mm (19.4")
D 289mm (11.4")
Net weight 10.5 kg (23.2 lbs)
Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
