Yamaha DBR15 15in Powered Speaker System

Stock Code:
330904
Price:
$869.00
Stock Level:
In Stock

Description

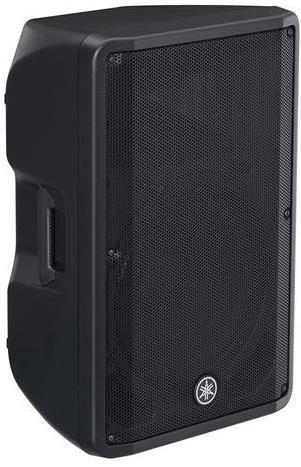

Yamaha DBR15, 15" 2-way Powered Loudspeaker

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10″, 12″ and 15″ models, each DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor- monitoring and even rigged applications. Whether you’re powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

Yamaha DBR15 powered speaker delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power. Yamaha's DBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition the DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics. The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grill bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

Rigging Points for Installation Applications

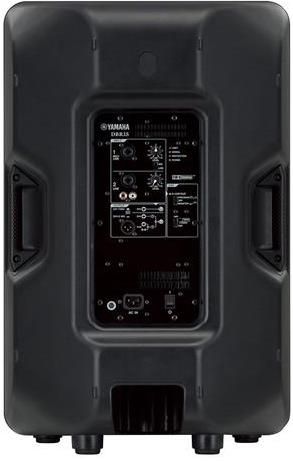

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts. DBR15 Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

General specifications

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 50Hz – 20kHz
Nominal coverageH 90°
V 60°
ComponentsLF Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 132dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
DimensionsW 455mm (17.9")
H 700mm (27.6")
D 378mm (14.9")
Net weight 19.3 kg (42.6 lbs)
